Cleveland

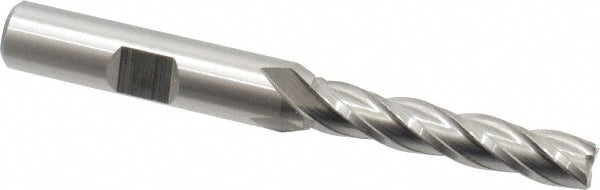

9/32" 4-Flute Cobalt Square End Mill - Cleveland C32647

MFR# C32647Series HGC-4C

$34.62List $44.41 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/32

Flutes4

MaterialCobalt

Description

The Cleveland C32647 is a 9/32 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-3/8 length of cut, 3-1/8 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-3/8

Length of cut range1.2500 - 1.5000

Length typeLong

Material gradeM42

Mill diameter in9/32

Number of flutes4

Overall length in3-1/8

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
