Cleveland

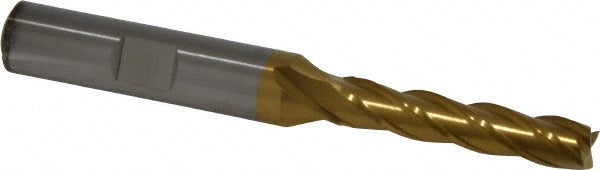

1/4" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32655

MFR# C32655Series HGC-4C

$37.60List $48.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialCobalt

CoatingTiN

Description

The Cleveland C32655 is a 1/4 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-1/4 length of cut, 3-1/16 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeLong

Material gradeM42

Mill diameter in1/4

Number of flutes4

Overall length in3-1/16

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
