5/8" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32664

Cleveland

5/8" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32664

MFR# C32664Series HGC-4C

$112.74List $144.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialCobalt
CoatingTiN

Description

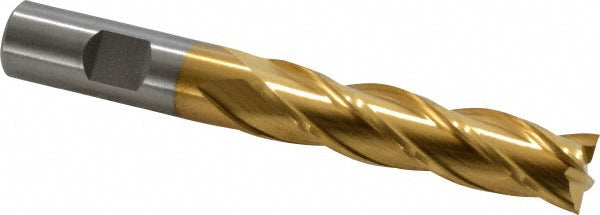

The Cleveland C32664 is a 5/8 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 2-1/2 length of cut, 4-5/8 overall length. Series HGC-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2-1/2
Length of cut range2.0000+
Length typeLong
Material gradeM42
Mill diameter in5/8
Number of flutes4
Overall length in4-5/8
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in5/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
