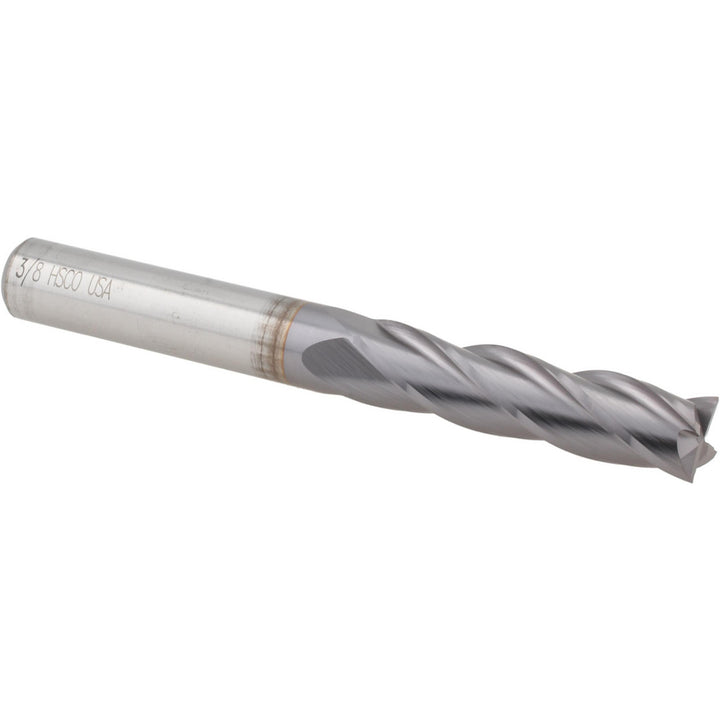

3/8" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32677

MFR# C32677Series HGC-4C-TC

$39.86List $51.11 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32677 is a 3/8 4-flute Cobalt (M42) square end mill with a TiCN finish for longer tool life. Suited for stainless steel, steel, high-temp alloy. 1-1/2 length of cut, 3-1/4 overall length. Series HGC-4C-TC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Coating finish familyTiCN

Coolant throughNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Length typeLong

Material gradeM42

Mill diameter in3/8

Number of flutes4

Overall length in3-1/4

Primary workpiece materialStainless Steel; Steel; High-Temp Alloy

Shank diameter in3/8

Shank typeWeldon Flat

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
