Cleveland

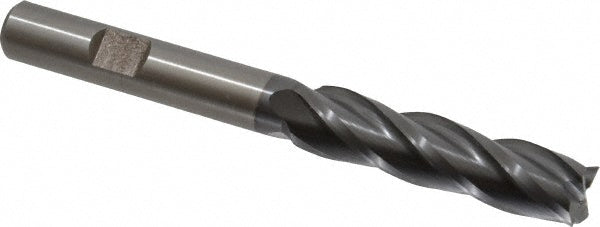

7/16" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32679

MFR# C32679Series HGC-4C

$51.17List $65.63 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32679 is a 7/16 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-3/4 length of cut, 3-3/4 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-3/4

Length of cut range1.5000 - 2.0000

Length typeLong

Material gradeM42

Mill diameter in7/16

Number of flutes4

Overall length in3-3/4

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
