Cleveland

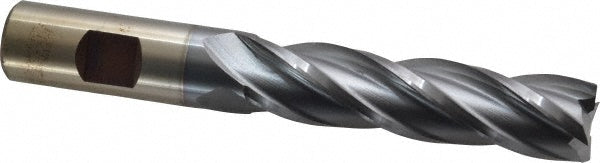

3/4" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32683

MFR# C32683Series HGC-4C

$132.23List $169.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32683 is a 3/4 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 3 length of cut, 5-1/4 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3

Length of cut range2.0000+

Length typeLong

Material gradeM42

Mill diameter in3/4

Number of flutes4

Overall length in5-1/4

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/4

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
