Cleveland

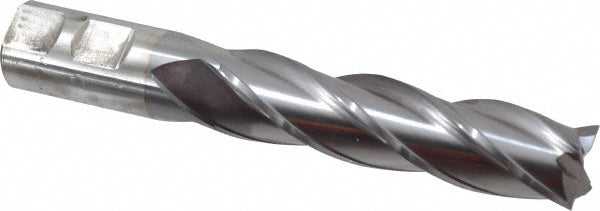

7/8" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32685
MFR# C32685Series HGC-4C
$138.17List $177.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/8
Flutes4
MaterialCobalt
CoatingTiCN
Description
The Cleveland C32685 is a 7/8 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 3-1/2 length of cut, 5-3/4 overall length. Series HGC-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3-1/2
Length of cut range2.0000+
Length typeLong
Material gradeM42
Mill diameter in7/8
Number of flutes4
Overall length in5-3/4
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in7/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
