Cleveland

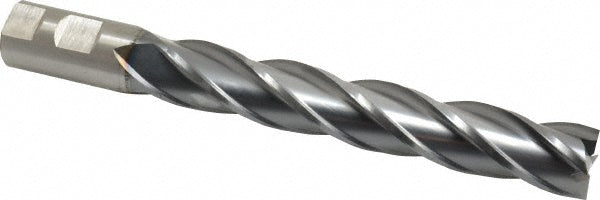

1" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32730
MFR# C32730Series HGC-4C
$282.96List $362.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes4
MaterialCobalt
CoatingTiCN
Description
The Cleveland C32730 is a 1 4-flute Cobalt (M42) square end mill with a TiCN finish for longer tool life. Suited for high temperature alloy, stainless steel, steel. 6 length of cut, 8-1/2 overall length. Series HGC-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in6
Length of cut range2.0000+
Length typeExtra Long
Material gradeM42
Mill diameter in1
Number of flutes4
Overall length in8-1/2
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in1
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
