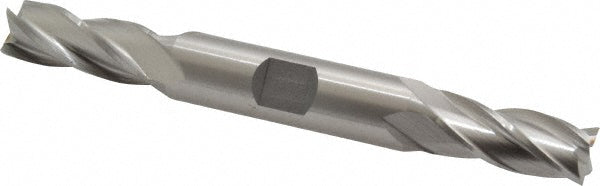

7/16" 4-Flute High Speed Steel Square End Mill - Cleveland C33043

Cleveland

7/16" 4-Flute High Speed Steel Square End Mill - Cleveland C33043

MFR# C33043Series HD-4C

$44.68List $57.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialHigh Speed Steel

Description

The Cleveland C33043 is a 7/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1 length of cut, 4-1/2 overall length. Series HD-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in7/16
Number of flutes4
Overall length in4-1/2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
