Cleveland

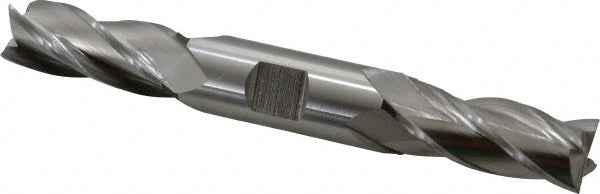

11/16" 4-Flute High Speed Steel Square End Mill - Cleveland C33051

MFR# C33051Series HD-4C

$163.58List $209.80 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter11/16

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C33051 is a 11/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-5/8 length of cut, 5-5/8 overall length. Series HD-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in11/16

Number of flutes4

Overall length in5-5/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/4

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
