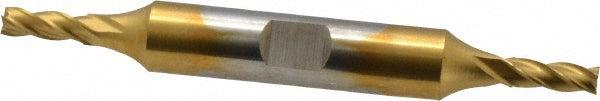

5/32" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33061

Cleveland

5/32" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33061

MFR# C33061Series HD-4C

$51.99List $66.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialHigh Speed Steel
CoatingTiN

Description

The Cleveland C33061 is a 5/32 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 7/16 length of cut, 3-1/8 overall length. Series HD-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Length typeRegular
Mill diameter in5/32
Number of flutes4
Overall length in3-1/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
