Cleveland

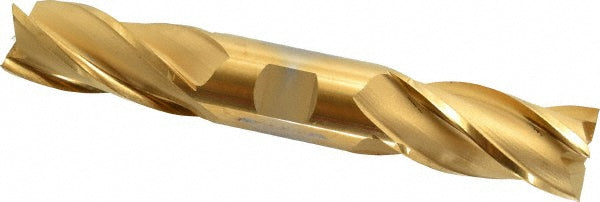

1" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33099
MFR# C33099Series HD-4C
$202.18List $254.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes4
MaterialHigh Speed Steel
CoatingTiN
Description
The Cleveland C33099 is a 1 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-7/8 length of cut, 6-3/8 overall length. Series HD-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-7/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in1
Number of flutes4
Overall length in6-3/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
