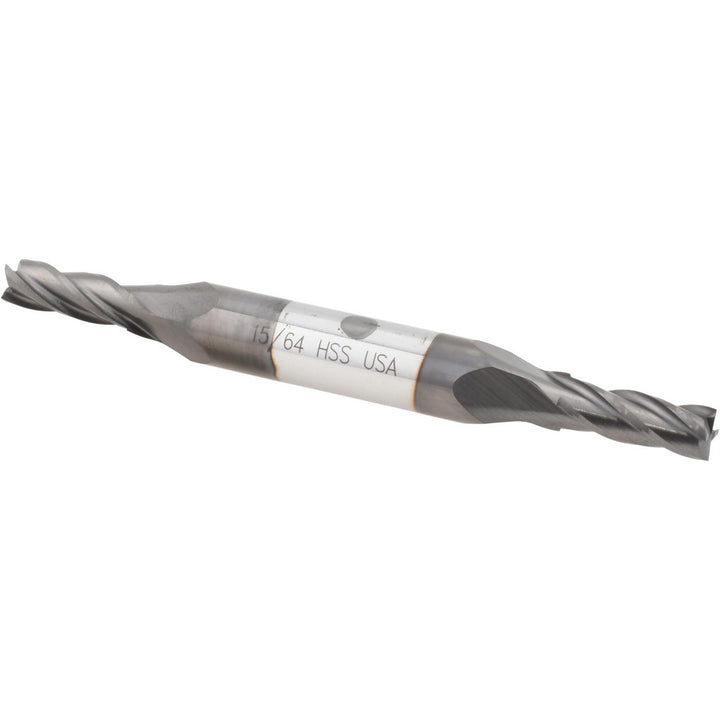

15/64" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33107

Cleveland

15/64" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33107

MFR# C33107Series HD-4C-TC

$43.49List $55.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter15/64
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33107 is a 15/64 4-flute High Speed Steel square end mill with a TiCN finish for longer tool life. Suited for cast iron, aluminum & non-ferrous, steel. 5/8 length of cut, 3-3/8 overall length. Series HD-4C-TC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Coating finish familyTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Mill diameter in15/64
Number of flutes4
Overall length in3-3/8
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; Steel
Shank diameter in3/8
Single or double endDouble
System of measurementFractional Inch
Variable helixNo
Variable indexNo
