Cleveland

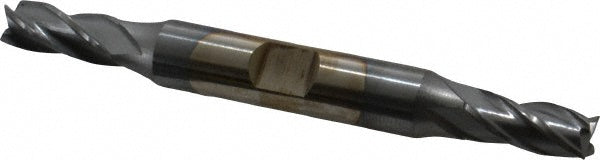

9/32" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33110
MFR# C33110Series HD-4C
$53.08List $66.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/32
Flutes4
MaterialHigh Speed Steel
CoatingTiCN
Description
The Cleveland C33110 is a 9/32 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 11/16 length of cut, 3-3/8 overall length. Series HD-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in11/16
Length of cut range0.6000 - 0.7000
Length typeRegular
Mill diameter in9/32
Number of flutes4
Overall length in3-3/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
