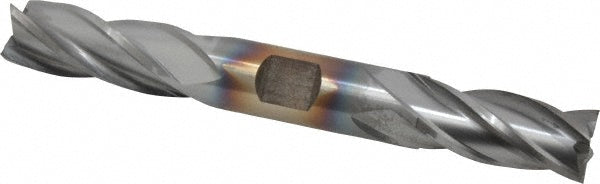

5/8" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33128

Cleveland

5/8" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33128

MFR# C33128Series HD-4C

$134.16List $172.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33128 is a 5/8 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-3/8 length of cut, 5 overall length. Series HD-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/8
Length of cut range1.2500 - 1.5000
Length typeRegular
Mill diameter in5/8
Number of flutes4
Overall length in5
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in5/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
