11/64" 4-Flute High Speed Steel Square End Mill - Cleveland C33143

Cleveland

11/64" 4-Flute High Speed Steel Square End Mill - Cleveland C33143

MFR# C33143Series HG-4C

$31.88List $40.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter11/64
Flutes4
MaterialHigh Speed Steel

Description

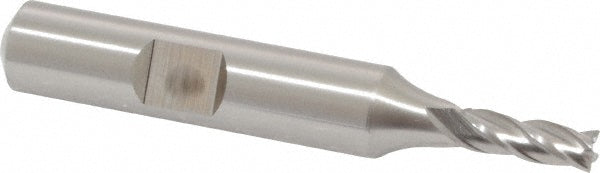

The Cleveland C33143 is a 11/64 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1/2 length of cut, 2-3/8 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Mill diameter in11/64
Number of flutes4
Overall length in2-3/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
