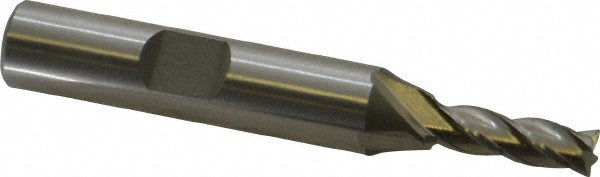

13/64" 4-Flute High Speed Steel Square End Mill - Cleveland C33144

Cleveland

13/64" 4-Flute High Speed Steel Square End Mill - Cleveland C33144

MFR# C33144Series HG-4C

$33.46List $42.18 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter13/64
Flutes4
MaterialHigh Speed Steel

Description

The Cleveland C33144 is a 13/64 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 5/8 length of cut, 2-7/16 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Mill diameter in13/64
Number of flutes4
Overall length in2-7/16
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
