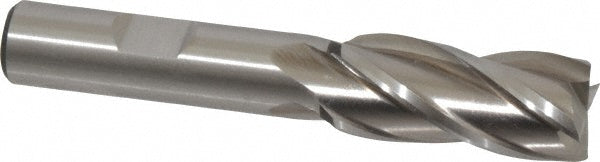

5/8" 4-Flute High Speed Steel Square End Mill - Cleveland C33164

Cleveland

5/8" 4-Flute High Speed Steel Square End Mill - Cleveland C33164

MFR# C33164Series HG-4C

$72.85List $93.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialHigh Speed Steel

Description

The Cleveland C33164 is a 5/8 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-3/8 length of cut, 3-3/8 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/8
Length of cut range1.2500 - 1.5000
Length typeRegular
Mill diameter in5/8
Number of flutes4
Overall length in3-3/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
