25/32" 4-Flute High Speed Steel Square End Mill - Cleveland C33170

Cleveland

25/32" 4-Flute High Speed Steel Square End Mill - Cleveland C33170

MFR# C33170Series HG-4C

$134.65List $169.69 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter25/32
Flutes4
MaterialHigh Speed Steel

Description

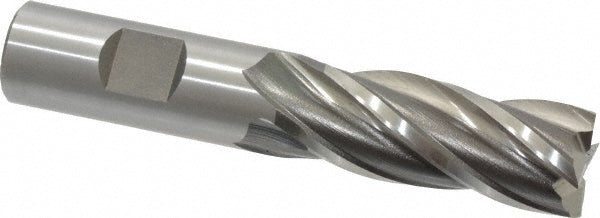

The Cleveland C33170 is a 25/32 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-7/8 length of cut, 4-1/8 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-7/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in25/32
Number of flutes4
Overall length in4-1/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/4
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
