Cleveland

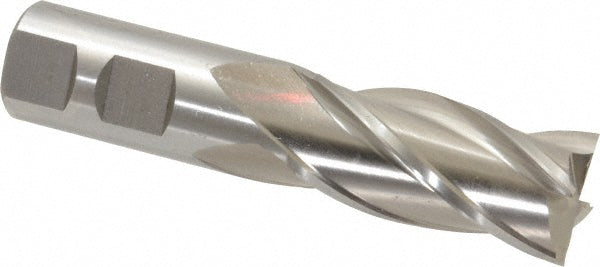

15/16" 4-Flute High Speed Steel Square End Mill - Cleveland C33176

MFR# C33176Series HG-4C

$121.17List $155.41 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter15/16

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C33176 is a 15/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-7/8 length of cut, 4-1/8 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-7/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in15/16

Number of flutes4

Overall length in4-1/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in7/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
