Cleveland

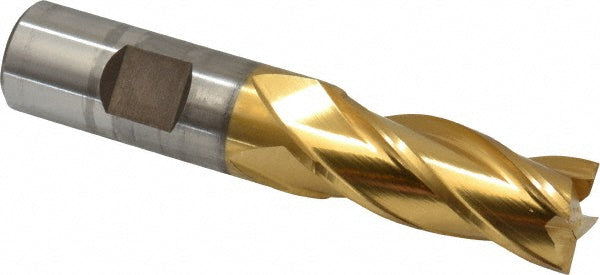

23/32" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33215

MFR# C33215Series HG-4C

$121.37List $155.66 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter23/32

Flutes4

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33215 is a 23/32 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-5/8 length of cut, 3-7/8 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in23/32

Number of flutes4

Overall length in3-7/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/4

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
