Cleveland

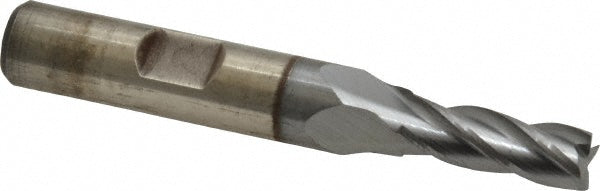

17/64" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33249
MFR# C33249Series HG-4C
$38.67List $49.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter17/64
Flutes4
MaterialHigh Speed Steel
CoatingTiCN
Description
The Cleveland C33249 is a 17/64 4-flute High Speed Steel square end mill with a TiCN finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 3/4 length of cut, 2-1/2 overall length. Series HG-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Mill diameter in17/64
Number of flutes4
Overall length in2-1/2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
