Cleveland

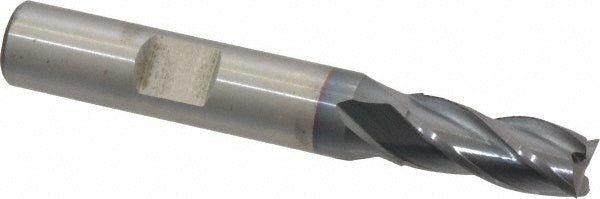

5/16" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33252

MFR# C33252Series HG-4C

$34.82List $44.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C33252 is a 5/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 3/4 length of cut, 2-1/2 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeRegular

Mill diameter in5/16

Number of flutes4

Overall length in2-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
