Cleveland

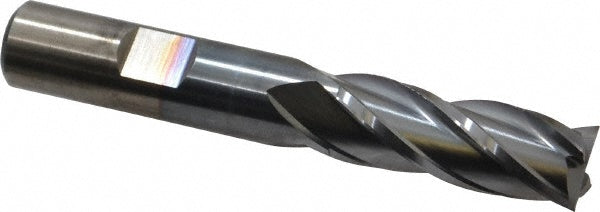

1/2" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33265

MFR# C33265Series HG-4C

$47.43List $60.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C33265 is a 1/2 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/4 length of cut, 3-1/4 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeRegular

Mill diameter in1/2

Number of flutes4

Overall length in3-1/4

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
