1-1/4" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33294

Cleveland

1-1/4" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33294

MFR# C33294Series HG-4C-TC

$216.98List $278.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1-1/4
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

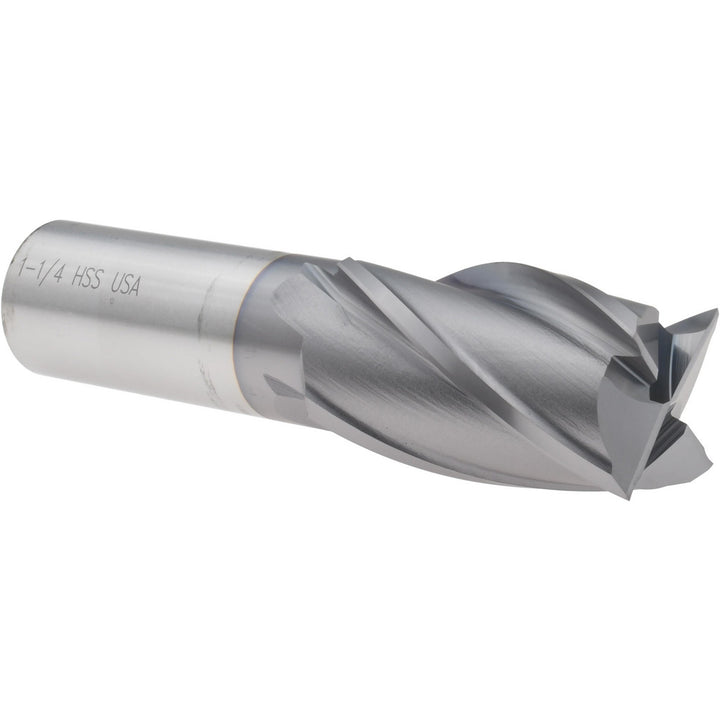

The Cleveland C33294 is a 1-1/4 4-flute High Speed Steel square end mill with a TiCN finish for longer tool life. Suited for cast iron, aluminum & non-ferrous, steel. 2 length of cut, 4-1/2 overall length. Series HG-4C-TC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Coating finish familyTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeRegular
Mill diameter in1-1/4
Number of flutes4
Overall length in4-1/2
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; Steel
Shank diameter in1
Shank typeWeldon Flat
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
