5/16" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33314

Cleveland

5/16" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33314

MFR# C33314Series HG-4B

$76.15List $97.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

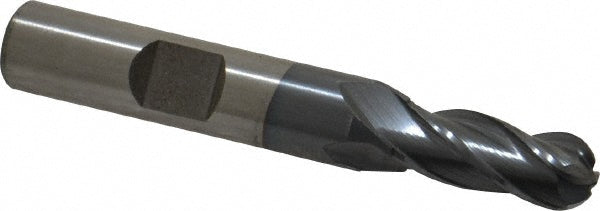

The Cleveland C33314 is a 5/16 4-flute High Speed Steel ball end mill with a TiCN finish for longer tool life. Suited for cast iron, steel. 3/4 length of cut, 2-1/2 overall length. Series HG-4B.

Specifications

ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material removal typeFinishing
Mill diameter in5/16
Number of flutes4
Overall length in2-1/2
Primary workpiece materialCast Iron; Steel
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS5/16" 4-Flute Solid Carbide Ball End Mill - SGS 33126 $60.71 OSG5/16" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG 414-3125-BN11 $36.72 SGS5/16" 4-Flute Solid Carbide Ball End Mill, TiCN - SGS 31783 $50.38 Hertel5/16" 4-Flute Solid Carbide Ball End Mill - Hertel E5252020 $70.38
