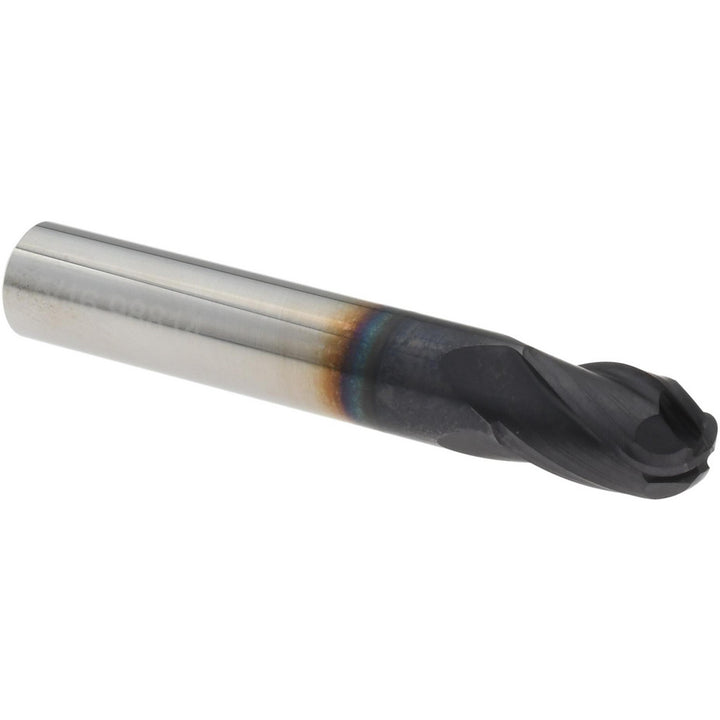

5/16" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG 414-3125-BN11
MFR# 414-3125-BN11Series 414BN
$36.72List $47.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG 414-3125-BN11 is a 5/16 4-flute Solid Carbide (TiAlN) ball end mill with a TiAlN finish for longer tool life. 1/2 length of cut, 2 overall length. Series 414BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in1/2
Length typeStandard
Manufacturers catalog number414-3125-BN11
Material gradeTiAlN
Material removal typeRoughing & Finishing
Mill diameter in5/16
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1563
Number of flutes4
Overall length in2
Reach length0.5000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in5/16
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
