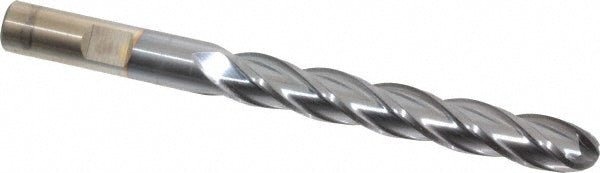

3/8" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33364

Cleveland

3/8" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33364

MFR# C33364Series HG-4B

$110.94List $142.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33364 is a 3/8 4-flute High Speed Steel ball end mill with a TiCN finish for longer tool life. Suited for cast iron, steel. 2-1/2 length of cut, 3-1/4 overall length. Series HG-4B.

Specifications

ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2-1/2
Length typeRegular
Material removal typeFinishing
Mill diameter in3/8
Number of flutes4
Overall length in3-1/4
Primary workpiece materialCast Iron; Steel
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS3/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36346 $60.40 Widia3/8" 4-Flute Solid Carbide Ball End Mill, TiAlN - Widia 5825684 $51.78 Harvey Tool3/8" 4-Flute Solid Carbide Corner Rounding End Mill, AlTiN - Harvey Tool 68118-C3 $191.46 Cleveland3/8" 4-Flute High Speed Steel Ball End Mill - Cleveland C41289 $59.90
