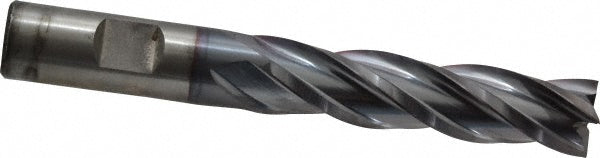

5/8" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33417

Cleveland

5/8" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33417

MFR# C33417Series HG-4C

$111.17List $140.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33417 is a 5/8 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2-1/2 length of cut, 4-5/8 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2-1/2
Length of cut range2.0000+
Length typeRegular
Mill diameter in5/8
Number of flutes4
Overall length in4-5/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in5/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
