Cleveland

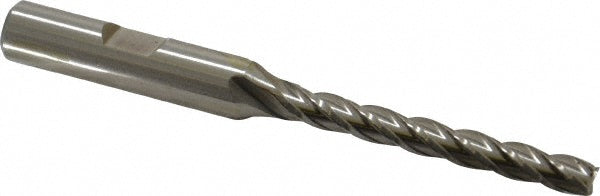

7/32" 4-Flute High Speed Steel Square End Mill - Cleveland C33429

MFR# C33429Series HG-4C

$49.29List $63.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/32

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C33429 is a 7/32 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-3/4 length of cut, 3-9/16 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-3/4

Length of cut range1.5000 - 2.0000

Length typeExtra Long

Mill diameter in7/32

Number of flutes4

Overall length in3-9/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
