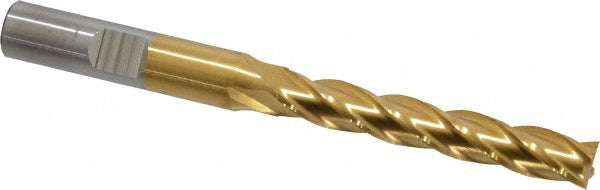

5/16" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33442

Cleveland

5/16" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33442

MFR# C33442Series HG-4C

$52.16List $66.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialHigh Speed Steel
CoatingTiN

Description

The Cleveland C33442 is a 5/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2 length of cut, 3-3/4 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeExtra Long
Mill diameter in5/16
Number of flutes4
Overall length in3-3/4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
