Cleveland

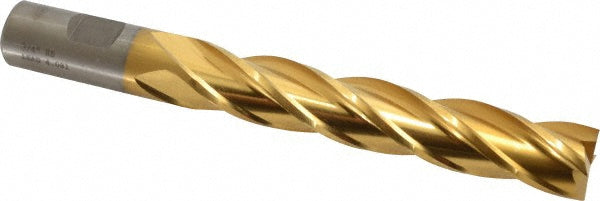

3/4" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33450
MFR# C33450Series HG-4C
$148.76List $190.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialHigh Speed Steel
CoatingTiN
Description
The Cleveland C33450 is a 3/4 4-flute High Speed Steel square end mill with a TiN finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 4 length of cut, 6-1/4 overall length. Series HG-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in4
Length of cut range2.0000+
Length typeExtra Long
Mill diameter in3/4
Number of flutes4
Overall length in6-1/4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/4
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
