Cleveland

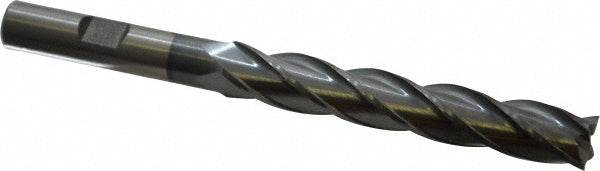

7/16" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33465

MFR# C33465Series HG-4C

$68.11List $87.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes4

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C33465 is a 7/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2-3/4 length of cut, 4-1/2 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in2-3/4

Length of cut range2.0000+

Length typeExtra Long

Mill diameter in7/16

Number of flutes4

Overall length in4-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
