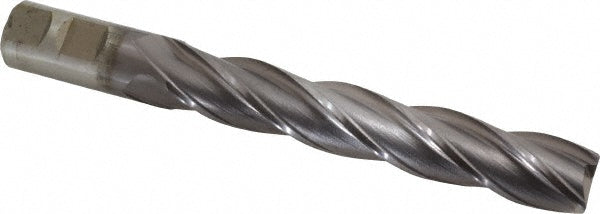

7/8" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33470

Cleveland

7/8" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33470

MFR# C33470Series HG-4C

$206.81List $265.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/8
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33470 is a 7/8 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 5 length of cut, 7-1/4 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5
Length of cut range2.0000+
Length typeExtra Long
Mill diameter in7/8
Number of flutes4
Overall length in7-1/4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in7/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
