Cleveland

3/4" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33625

MFR# C33625Series HG-4LL

$144.44List $185.25 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialHigh Speed Steel

CoatingTiCN

Description

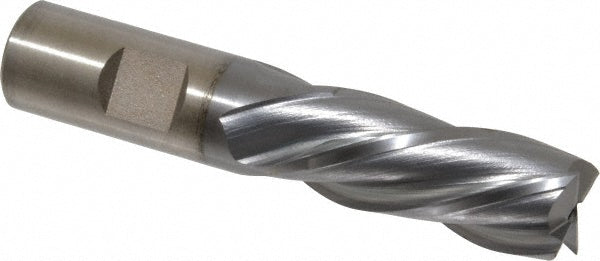

The Cleveland C33625 is a 3/4 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-5/8 length of cut, 3-7/8 overall length. Series HG-4LL.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiCN

Cutting directionLeft Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionLeft Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in3/4

Number of flutes4

Overall length in3-7/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/4

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
