Cleveland

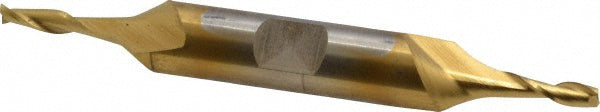

1/8" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33648

MFR# C33648Series HD-2

$41.29List $52.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33648 is a 1/8 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 3/8 length of cut, 3-1/16 overall length. Series HD-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/8

Length of cut range0.3000 - 0.5000

Length typeRegular

Mill diameter in1/8

Number of flutes2

Overall length in3-1/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
