Cleveland

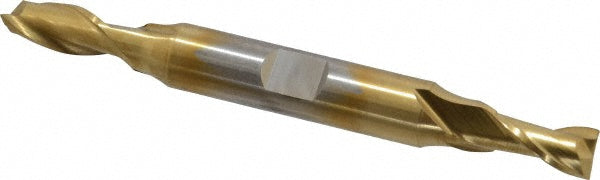

9/32" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33658

MFR# C33658Series HD-2

$43.36List $55.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/32

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33658 is a 9/32 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 9/16 length of cut, 3-3/8 overall length. Series HD-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in9/16

Length of cut range0.5000 - 0.6000

Length typeRegular

Mill diameter in9/32

Number of flutes2

Overall length in3-3/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
