Cleveland

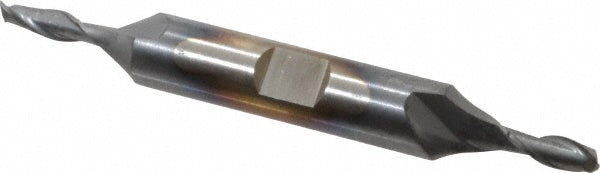

5/32" 2-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33691

MFR# C33691Series HD-2

$45.26List $58.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/32

Flutes2

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C33691 is a 5/32 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 7/16 length of cut, 3-1/8 overall length. Series HD-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in7/16

Length of cut range0.3000 - 0.5000

Length typeRegular

Mill diameter in5/32

Number of flutes2

Overall length in3-1/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
