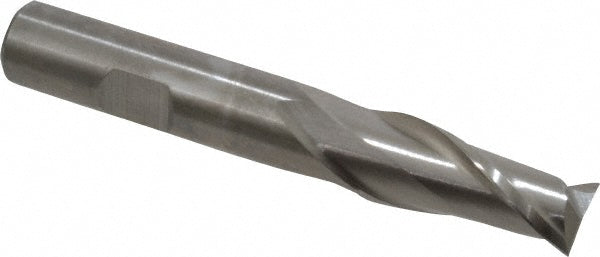

33/64" 2-Flute High Speed Steel Square End Mill - Cleveland C33747

Cleveland

33/64" 2-Flute High Speed Steel Square End Mill - Cleveland C33747

MFR# C33747Series HG-2

$60.56List $77.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter33/64
Flutes2
MaterialHigh Speed Steel

Description

The Cleveland C33747 is a 33/64 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/8 length of cut, 3-3/8 overall length. Series HG-2.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in33/64
Number of flutes2
Overall length in3-3/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
