Cleveland

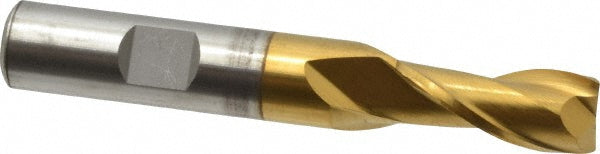

29/64" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33769

MFR# C33769Series HG-2

$51.98List $66.67 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter29/64

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33769 is a 29/64 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 13/16 length of cut, 3-1/4 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in13/16

Length of cut range0.8000 - 1.0000

Length typeRegular

Mill diameter in29/64

Number of flutes2

Overall length in3-1/4

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
