Cleveland

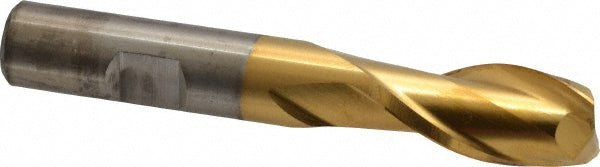

9/16" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33776

MFR# C33776Series HG-2

$60.70List $77.86 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/16

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33776 is a 9/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/8 length of cut, 3-3/8 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Length typeRegular

Mill diameter in9/16

Number of flutes2

Overall length in3-3/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
