Cleveland
5/8" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33780
MFR# C33780Series HG-2
$66.39List $85.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes2
MaterialHigh Speed Steel
CoatingTiN
Description

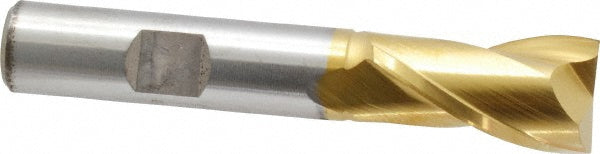

The Cleveland C33780 is a 5/8 2-flute High Speed Steel square end mill with a TiN finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 1-1/8 length of cut, 3-3/8 overall length. Series HG-2.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in5/8
Number of flutes2
Overall length in3-3/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
