Cleveland

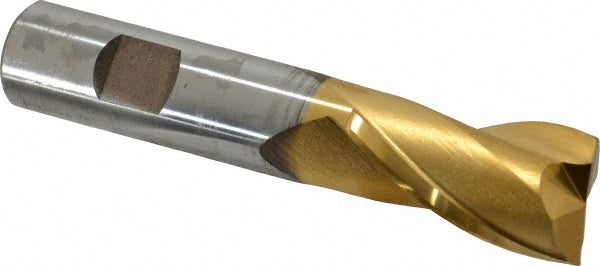

7/8" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33787

MFR# C33787Series HG-2

$89.16List $114.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/8

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33787 is a 7/8 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/2 length of cut, 4-1/8 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in7/8

Number of flutes2

Overall length in4-1/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/4

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
