Cleveland

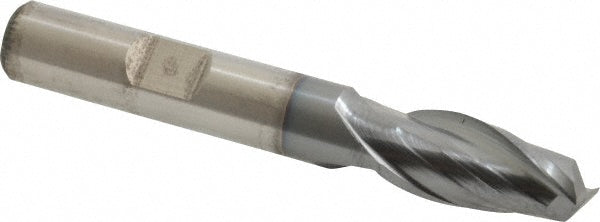

13/32" 2-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33820

MFR# C33820Series HG-2

$45.66List $58.57 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter13/32

Flutes2

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C33820 is a 13/32 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 13/16 length of cut, 2-11/16 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in13/16

Length of cut range0.8000 - 1.0000

Length typeRegular

Mill diameter in13/32

Number of flutes2

Overall length in2-11/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
