Cleveland

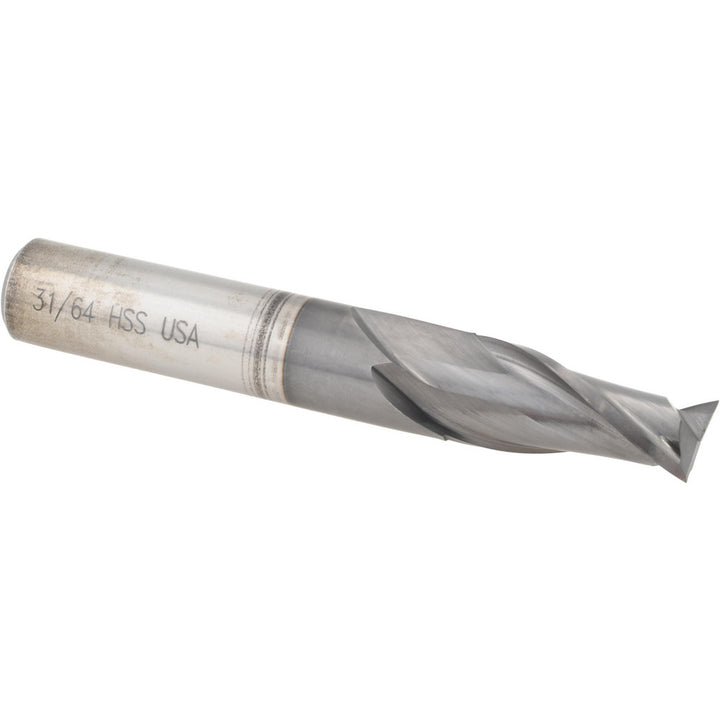

31/64" 2-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33825

MFR# C33825Series HG-2-TC

$59.22List $75.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter31/64

Flutes2

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C33825 is a 31/64 2-flute High Speed Steel square end mill with a TiCN finish for longer tool life. Suited for cast iron, aluminum & non-ferrous, steel. 13/16 length of cut, 3-1/4 overall length. Series HG-2-TC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Coating finish familyTiCN

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in13/16

Length of cut range0.8000 - 1.0000

Length typeRegular

Mill diameter in31/64

Number of flutes2

Overall length in3-1/4

Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; Steel

Shank diameter in1/2

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
