Cleveland

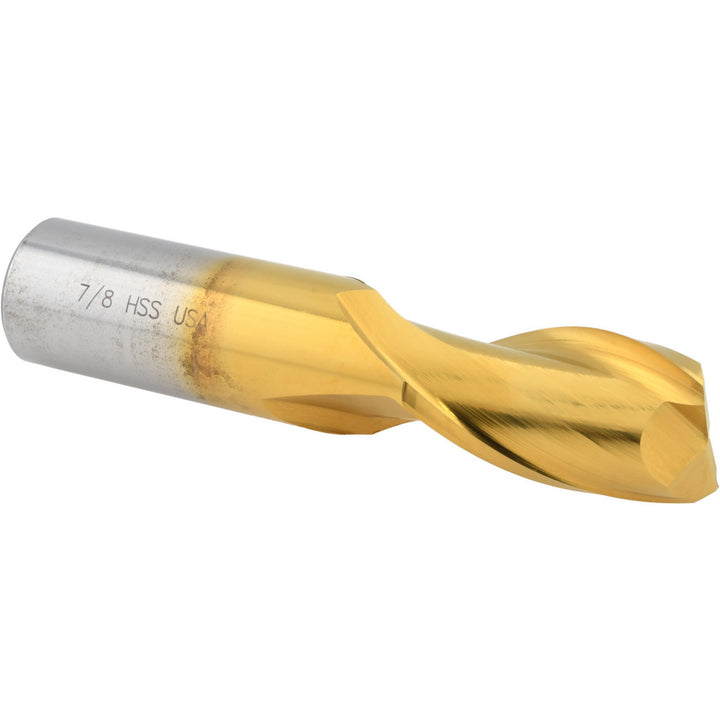

2-Flute High Speed Steel Keyway End Mill, TiN - Cleveland C38950
MFR# C38950Series HG-2K
$127.78List $163.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialHigh Speed Steel
Description
The Cleveland C38950 is a 2-flute High Speed Steel keyway end mill with a TiN finish for longer tool life. Series HG-2K.
Specifications
End mill materialHigh Speed Steel
Finish coatingTiN
Flute typeSpiral
Helix angle30.0
Length of cut1.5in
Material removal typeFinishing
Mill diameter0.875in
Mill diameter tolerance+0.0000/-0.0015 in
Number of flutes2
Secondary workpiece materialCast Iron; Steel
Shank diameter0.3670
Shank typeStraight; Weldon Flat
