Cleveland

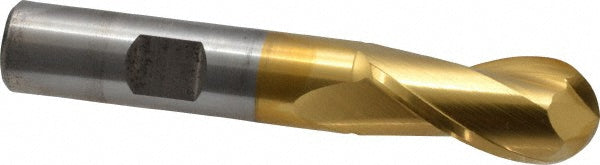

9/16" 2-Flute High Speed Steel Ball End Mill, TiN - Cleveland C39017
MFR# C39017Series HG-2B
$89.88List $115.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/16
Flutes2
MaterialHigh Speed Steel
CoatingTiN
Description
The Cleveland C39017 is a 9/16 2-flute High Speed Steel ball end mill with a TiN finish for longer tool life. Suited for cast iron, steel. 1-1/8 length of cut, 3-3/8 overall length. Series HG-2B.
Specifications
ChipbreakerNo
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length typeRegular
Material removal typeFinishing
Mill diameter in9/16
Number of flutes2
Overall length in3-3/8
Primary workpiece materialCast Iron; Steel
Shank diameter in1/2
Single or double endSingle
Variable helixNo
Variable indexNo
