9/16" 2-Flute Solid Carbide Ball End Mill - SGS 30366

SGS

9/16" 2-Flute Solid Carbide Ball End Mill - SGS 30366

MFR# 30366Series 3B

$124.39List $159.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

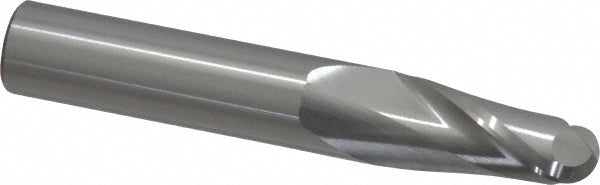

The SGS 30366 is a 9/16 2-flute Solid Carbide (Micrograin) ball end mill. 1-1/8 length of cut, 3-1/2 overall length. Series 3B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length typeRegular
Material gradeMicrograin
Mill diameter in9/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes2
Overall length in3-1/2
Shank diameter in9/16
Shank diameter tolerance+0.00000 to -0.00043 in
Single or double endSingle
Variable helixNo
Variable indexNo
