Cleveland

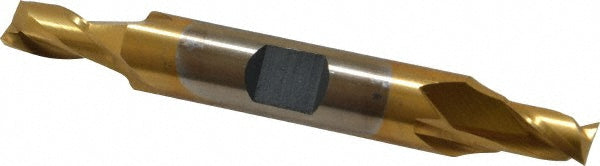

1/4" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C39048

MFR# C39048Series HD-2

$36.30List $46.55 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C39048 is a 1/4 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 3/8 length of cut, 2-7/8 overall length. Series HD-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/8

Length of cut range0.3000 - 0.5000

Length typeStub

Mill diameter in1/4

Number of flutes2

Overall length in2-7/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
