Cleveland

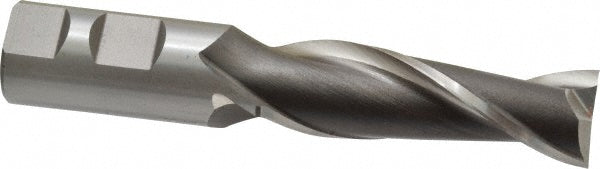

15/16" 2-Flute High Speed Steel Square End Mill - Cleveland C39077

MFR# C39077Series HG-2

$160.46List $205.79 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter15/16

Flutes2

MaterialHigh Speed Steel

Description

The Cleveland C39077 is a 15/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 3 length of cut, 5-1/2 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3

Length of cut range2.0000+

Length typeLong

Mill diameter in15/16

Number of flutes2

Overall length in5-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
